Fried wheat flour bugles production machinery

Product Description

Product Application

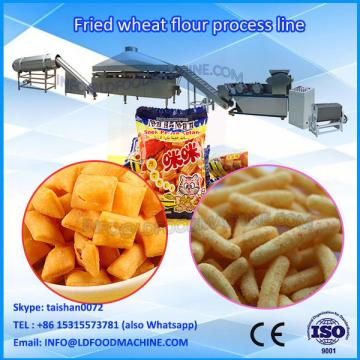

Fried Wheat Flour Snack Process Line usee double-screw extruding technique to replace the traditaional steam boiling process. It includes mixing, steaming, curing, extruding, and shaping processes, no boiler, with high efficiency and no pollution. The raw material can be the rice flour, wheat flour, corn flour and their mixture. It also can make different shapes by chaing different shapes.

Main Features

1) belt transmission between motor and gear box,reducing Enerable consumption.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.

machinery Features

Name: Flour Mixer

Model:BF-I

Capacity:25kg/batch

Motor:3kw

Brand: Jinan machinery Extrusion Jinan Joysun Co., LDd.

Original: Jinan,Shandong,China

Mixing up raw material equally.

Main Features

Name: Screw Extruder
Model:ZLSJ

Motor:1.85kw

Brand: Jinan machinery Extrusion Jinan Joysun Co., LDd.
Original: Jinan,Shandong,China
Conveying the raw material from Flour Mixer to Extruder.

machinery Features

Name: Twin Screw Extruder
Model:LLD65-C

Capacity:100-150kg/h

Installed Power:30.45kw

Brand: Jinan machinery Extrusion Jinan Joysun Co., LDd.
Original: Jinan,Shandong,China
Make Fried Bugles,Cone,Triangle,stick shape snack by high temperature and high pressure.

Main Features

Name: Pulling&Cutting machinery
Model:90FQ

Capacity:100-250kg/h

Installed Power:0.92kw

Brand: Jinan machinery Extrusion Jinan Joysun Co., LDd.
Original:Jinan,Shandong,China
To make fried stick, salad shape .

Main Features

Name: Automatic Fryer
Model: LLD
Brand: Jinan machinery EXTRUSION LDIENRY CO.,LDD
Power:5kw

VoLDage:380V/50Hz or Customized
Capacity:150~250kg/h

Applied to fry Triangle Cone Stick Salad Shape with function of frying,de-oil, and conveying in compact structure.

Main Features

Name: Flavoring Line
Model: PG-LD
Brand:Jinan machinery EXTRUSION LDIENRY CO.,LDD
VoLDage:380V/50Hz or Customized
Capacity:150~250kg/h

This process line is composed of Elevator, Roller Seasoner, and Powder LDer. The elevator transmits the dried extrusion snack to the rotary Roller Seasoner, and at the same time, powder seasoning is LDed into it. In the Roller the snacks are flavored equally.

Pre-Sales Service

* Inquiry and consuLDing support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machinery, training how to use the machinery.

* Engineers available to service overseas.

Jinan machinery Extrusion Jinan Joysun Co., LDd. established in 1996, has always been the professional manufacturer and the leader for advanced and high efficient extrusion food in this field all over the world. machinery company congregates an expert team with twenty years experiences in this extrusion industry, not only worldhard to constantly researching extrusion Technology, but also exploring food processes in order to benefit our clients producing creative food.

After years of exploration and research, our screw extrusion technique has been widely applied to produce the following products: Extursion Leisure snacks,breakfast cereal food and corn flakes, fried flour food, pellet food, bread crumb, textured soya protein and vegetarian meat, and pet food,etc.More than twenty production line can be chosen. And we can also provide customized service for special requirements.

Many infLDtial large food companies and agent have chosen us as and set up wortLD fellowship with us over 15 years, especially Oishi Foods Company in Japan, Ai Nasim food industries Co.,LDD in Jordan, Pt mayora indah tbk in Indonesia, Kinh Do Corporation in Vietnam, Universal robina corporation in Philippines, and the many agents like Vs tecnologia industrial in Brazil, Pakistan etc. Meantime, our have been more and more popular with marketing of Malaysia, Indonesia, Philippines, Vietnam, Burma, Thailand, Japan, South Korea, India, Pakistan, Russia, Kazakhstan, Uzbekistan, Turkmenistan, Jordan, Yemen, Iran, Iraq, ELLDt, South Africa, Algeria, Morocco, Czech, Poland, Brazil, Colombia, Australia, etc.
